professional telecom antenna tower technical supplier
3 Years
| Ask Lasest Price | |
| Brand Name : | QJ |
| Model Number : | QC30 |
| Price : | 35000 |
| Payment Terms : | L/C, D/A, D/P, T/T |
| Supply Ability : | 10 set per month |
| Delivery Time : | 30 days |
Size: no.1 section from top to bottom (below are the same) 48*2mm
(diameter*wall thickness), lattice bar 15*2mm
No.2 48*2mm, lattice bar 15*2mm
No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.5 76*2.5mm, lattice bar 28*2.5mm + 20*2mm
Bottom plate 12mm thickness

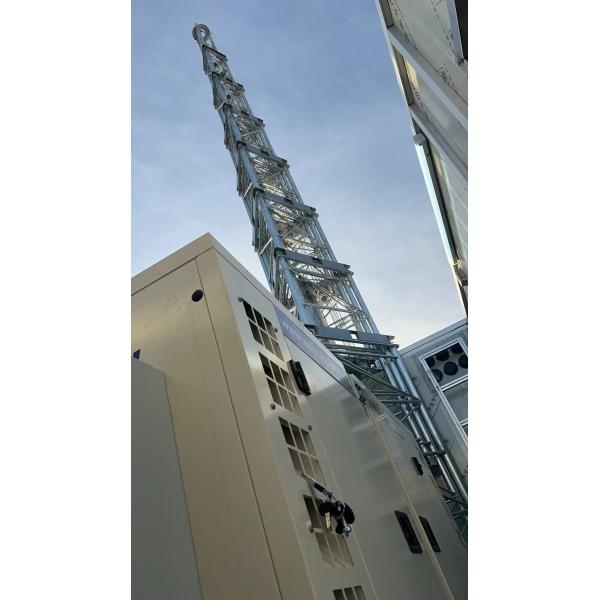

A cell on wheels, commonly known as a COW, can be quickly delivered to any site for emergency coverage on a short-term basis
Our COW help ensure a strong communication network, even in remote locations.Traditional portable towers are often limited by instability and payload capacity restrictions.
Our towers are made with galvanized steel body that makes them resistant to corrosive elements and provides enough strength to carry payloads over 500 kgs. Towers can be towed easily and set up anywhere regardless of terrain or uneven surfaces, making them ideal for any situation.
Size: no.1 section from top to bottom (below are the same) 48*2mm (diameter*wall thickness), lattice bar 15*2mm
No.2 48*2mm, lattice bar 15*2mm
No.3 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.4 60*2.5mm, lattice bar 20*2mm + 15*2mm
No.5 76*2.5mm, lattice bar 28*2.5mm + 20*2mm
Bottom plate 12mm thickness
Additionally, our communications towers can be deployed quickly and efficiently.
Each section was lifter by 3 seperated steel ropes, any emmergency broken one of them, the tower still safe with out collaps.
| model | QT10 | QT15 | QT20 | QT25 | QT30 |
| tower height | 10m | 15m | 20m | 25m | 30m |
| max load | 500kg | 500kg | 400kg | 300kg | 300kg |
| tilt type | manual/ hydraulic | manual / hydraulic | hydraulic | hydraulic | hydraulic |
| lifting type | manual/hydraulic/winch | hmanual /hydraulic/winch | hydraulic/winch | hydraulic | hydraulic |
| no. stage | 4 | 5 | 5 | 6 | 7 |
| trailer with extend legs | 2 wheels | 4 | 4 | 4 | 4 |
| shelter | y/n | y/n | y/n | y/n | y/n |
|
|
